nTop Optimization and Field Driven Design Workflow
Weight Bearing Bracket
A comprehensive engineering project demonstrating advanced topology optimization and lattice structure generation
Design Process and Methods
Initial Constraints
Manufacturing Support
Initial Constraints
The goal was to achieve 70% mass reduction while keeping force constraints: Given the basic shape and forces optimization constraints were inputted to maintain structural compliance under applied loads. First loads and restraints were added, then parameters were applied.
Volume Reduction
Manufacturing Support
Initial Constraints
Through sophisticated topology optimization algorithms and iterative FEA analysis 70% of the original material volume was removed. The next step was to ensure that the optimized design meets all structural requirements under realistic loading conditions, with particular attention to stress concentrations and deformation limits.
Manufacturing Support
Manufacturing Support
Scalar Field for Density derived lattice structure
FEA Analysis showed that using the volume constraints, extrusion constraints and stress constraints, the bracket would be able to successfully hold the load.
Scalar Field for Density derived lattice structure
Scalar Field for Density derived lattice structure
Scalar Field for Density derived lattice structure
A scalar field was systematically derived from the topology optimization results, capturing the density distribution information that indicates the relative importance of material in different regions of the component. This field serves as the foundation for creating variable-density lattice structures that concentrate material where it is most needed for structural performance.
Boolean Union
Scalar Field for Density derived lattice structure
Boolean Union
Once the lattice structure was designed the mesh needed to be combined with the original structure of the bracket. The mesh was trimmed and a Boolean Union was created between the two.
3D Printing
Scalar Field for Density derived lattice structure
Boolean Union

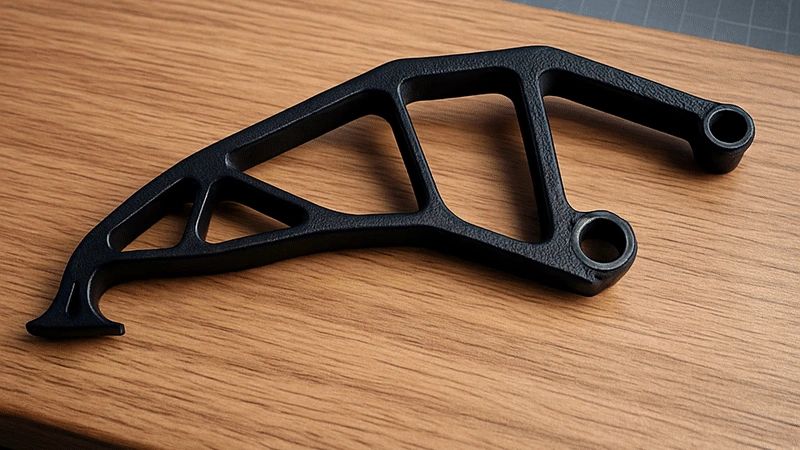

Extrusion constraints needed to be followed in the slicing software to ensure the same conditions that nTop prescribed. The final print included the structural bracket and the lattice mesh
Implementation Details
Optimization Algorithm Configuration:
Optimization Algorithm Configuration:
Optimization Algorithm Configuration:
Single-body topology optimization was performed with structural compliance as the primary response function. This approach ensures that the optimized design maintains adequate stiffness under applied loads while minimizing material usage. The optimization algorithm was configured with specific constraints including:
•Volume Fraction Constraint: Limiting the final design to 30% of the original material volume to achieve the target 70% mass reduction
•Extrusion Constraint: Ensuring the optimized geometry could be manufactured using additive manufacturing processes by maintaining consistent cross-sections in the expected printing direction
•Stress Constraints: Preventing the formation of stress concentrations that could lead to premature failure
Periodic Lattice Generation:
Optimization Algorithm Configuration:
Optimization Algorithm Configuration:
Using the processed scalar field as input, periodic lattice structures were generated with thickness variations directly correlated to the optimization results. The lattice generation process involved:
•Unit Cell Selection: Choosing appropriate lattice unit cell geometries that provide optimal strength-to-weight ratios for the specific loading conditions
•Thickness Mapping: Applying the scalar field data to control lattice member thickness throughout the component volume
•Connectivity Optimization: Ensuring proper connectivity between lattice elements to maintain load transfer paths
Results and Performance Analysis
nTop optimization workflow yielded results that showed the effectiveness of computational design
The comprehensive analysis of results provides valuable insights into both the successes achieved and the challenges encountered during the optimization process.
Optimization Performance Metrics
Mass Reduction Achievement:
The topology optimization successfully achieved the target 70% mass reduction, demonstrating the effectiveness of the computational approach in identifying and removing non-critical material. This substantial weight reduction was accomplished while maintaining the structural compliance requirements under all specified loading conditions. The optimization algorithm effectively identified load paths through the component and concentrated material in regions critical for structural performance.
Structural Performance Validation:
The optimized design maintained structural compliance under all applied loading conditions, with stress levels remaining within acceptable limits for the specified material properties. The optimization process successfully preserved critical load transfer paths while eliminating material from regions that contributed minimally to overall structural performance.
Lattice Structure Quality:
The field-driven lattice generation process produced complex internal structures that efficiently distributed loads throughout the component volume. The variable-density lattice approach resulted in thicker lattice members in high-stress regions and thinner members in areas with lower structural demands, optimizing material usage based on local stress conditions.
Reflection and Lessons Learned
Future uses of computer aided design optimization
Computational Resource Planning:
This project highlighted the critical importance of computational resource planning when working with advanced optimization workflows. The balance between mesh resolution and computational feasibility represents a key challenge that must be addressed in future projects through progressive mesh refinement strategies and access to high-performance computing resources.
Workflow Integration Optimization:
The transition from topology optimization to lattice generation and finally to FEA validation revealed opportunities for workflow optimization. Future iterations would benefit from integrated approaches that consider validation requirements during the optimization process, potentially reducing the computational challenges encountered during the validation phase.
Manufacturing Constraint Integration:
The project demonstrated the value of integrating manufacturing constraints directly into the optimization process rather than addressing them as post-processing steps. This approach ensures that the optimized designs are inherently manufacturable and reduces the need for extensive geometry modification after optimization.
Progressive Validation Strategies:
Future projects would benefit from progressive validation strategies that perform intermediate checks during the optimization process rather than attempting comprehensive validation only at the final stage. This approach would help identify potential issues earlier in the workflow and allow for corrective actions before significant computational resources are invested.
